Steel is our Business
Steel fabrication and prefabricated houses are what we do
Steel fabrication and prefabricated houses are what we do
Polyurethane Spray Insulation
Prometal has introduced a new Mobile Thermal Insulation Line to the list of products and services it offers.
readmore
Prometal has introduced a new Mobile Thermal Insulation Line to the list of products and services it offers.
readmore
APRIL
2013
2013
Wood Houses and Cabines
Being so beautiful and eye catching, the demand on Wood Houses is highly increasing. Prometal has created a special department “Prometal Nature” just to focuse on this line.
readmore
Being so beautiful and eye catching, the demand on Wood Houses is highly increasing. Prometal has created a special department “Prometal Nature” just to focuse on this line.
readmore
May
2013
2013
K-span Constructions
Prometal has recently introduced K-Span construction line to Lebanon and Dubai markets. With spans exceeding 20m, the structure installation is quick and extremely faster than regularly constructed buildings.
readmore
Prometal has recently introduced K-Span construction line to Lebanon and Dubai markets. With spans exceeding 20m, the structure installation is quick and extremely faster than regularly constructed buildings.
readmore
July
2013
2013
PROMETAL INDUSTRIES GROUP of Companies provides a full range of engineering and construction services and solutions. Our team of technical experts, specialized project management teams, skilled man power and state-of-the-art technology ensures timely and successful completion of projects.
UAE
Jumerah Lake Towers.
P.O.Box: 299721,Dubai.
Factory : Sajaa Industrial Area- Sharjah.
Tel: +971 4 447 1561
Fax: +971 4 447 1563
Jumerah Lake Towers.
P.O.Box: 299721,Dubai.
Factory : Sajaa Industrial Area- Sharjah.
Tel: +971 4 447 1561
Fax: +971 4 447 1563

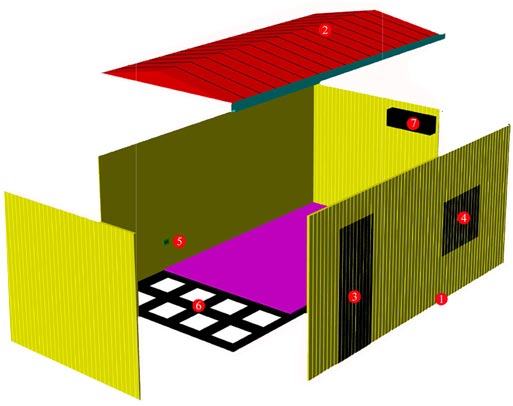

1. Chassis/Frame:
Structure of the prefabricated unit is made of steel.
Floor is made of a galvanized steel frame with transversal and longitudinal beams (80 x 40 mm). A 50mm deep steel plate is welded around the perimeter of the frame forming a skin, to which the panels are bolted. Frame is painted with 2 epoxy coats.
2. Floor coverage: Floor structure is covered with 18mm marine plywood or fiber cement boards to ensure durability, water and moisture resistance.
Final inside covering is made by a 3mm thick electro-static vinyl.
3.Walls: Are made of sandwich panels (thickness 50 mm) between pre-painted
galvanized sheets with polyurethane insulation of 40 kg/m3 density. Panels are fixed to a solid steel angle at the top and bolted to the bottom steel plate. Strengthening of walls will be made by a 3mm thick painted steel sheets installed from the inner side and welded to the floor and roof steel structure.
4.Roof (Flat Type): Are made of sandwich panels (thickness 50 mm) between pre-painted galvanized sheets with polyurethane insulation of 40 kg/m3 density. Strengthening of roof will be made by a 3mm thick painted steel sheets installed from the inner side. A slight inclination, along with a steel gutter (2mm thick), and PVC down spouts for rainwater drainage.
5.Doors: External and internal doors are steel lined, insulated, powder coated and fitted with stainless steel knob-locks. It is considered as 60 min fire rated steel doors.
6 Windows:a range of windows and top opening vents can be added including Aluminum or PVC frames (single or double glazed) to virtually any window size required, depending on application.
Floor is made of a galvanized steel frame with transversal and longitudinal beams (80 x 40 mm). A 50mm deep steel plate is welded around the perimeter of the frame forming a skin, to which the panels are bolted. Frame is painted with 2 epoxy coats.
2. Floor coverage: Floor structure is covered with 18mm marine plywood or fiber cement boards to ensure durability, water and moisture resistance.
Final inside covering is made by a 3mm thick electro-static vinyl.
3.Walls: Are made of sandwich panels (thickness 50 mm) between pre-painted
galvanized sheets with polyurethane insulation of 40 kg/m3 density. Panels are fixed to a solid steel angle at the top and bolted to the bottom steel plate. Strengthening of walls will be made by a 3mm thick painted steel sheets installed from the inner side and welded to the floor and roof steel structure.
4.Roof (Flat Type): Are made of sandwich panels (thickness 50 mm) between pre-painted galvanized sheets with polyurethane insulation of 40 kg/m3 density. Strengthening of roof will be made by a 3mm thick painted steel sheets installed from the inner side. A slight inclination, along with a steel gutter (2mm thick), and PVC down spouts for rainwater drainage.
5.Doors: External and internal doors are steel lined, insulated, powder coated and fitted with stainless steel knob-locks. It is considered as 60 min fire rated steel doors.
6 Windows:a range of windows and top opening vents can be added including Aluminum or PVC frames (single or double glazed) to virtually any window size required, depending on application.
Advantages of using PROMETAL INDUSTRIES GROUP’s
prefabricated units:
prefabricated units:
 |
Resistance and durability |
|
Energy saving (hot and cold) |
|
Heat insulation\improvement |
|
Fireproof |
|
Lightweight |
|
Quick and Easy installation. |
